The cutting and stacking system is the final stage of a sandwich panel production line.
It is responsible for precise panel length cutting, clean edge finishing, and automatic stacking of finished panels.
A stable and accurate cutting and stacking system ensures product consistency, packaging efficiency, and smooth downstream logistics.
After foaming or core processing and curing, sandwich panels must be cut to exact lengths and prepared for handling and storage.
The cutting and stacking system ensures:
Accurate panel length control
Clean and straight cutting edges
Safe and efficient panel stacking
Errors in this stage may lead to size deviation, material waste, or damage during transportation.
The cutting and stacking system consists of several coordinated units designed for continuous and automated operation.

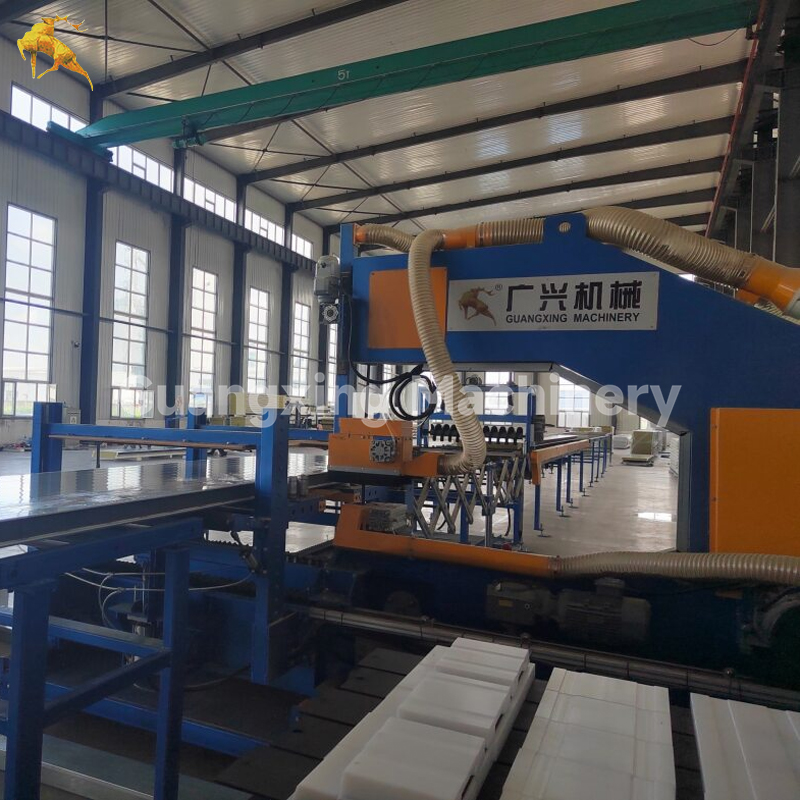

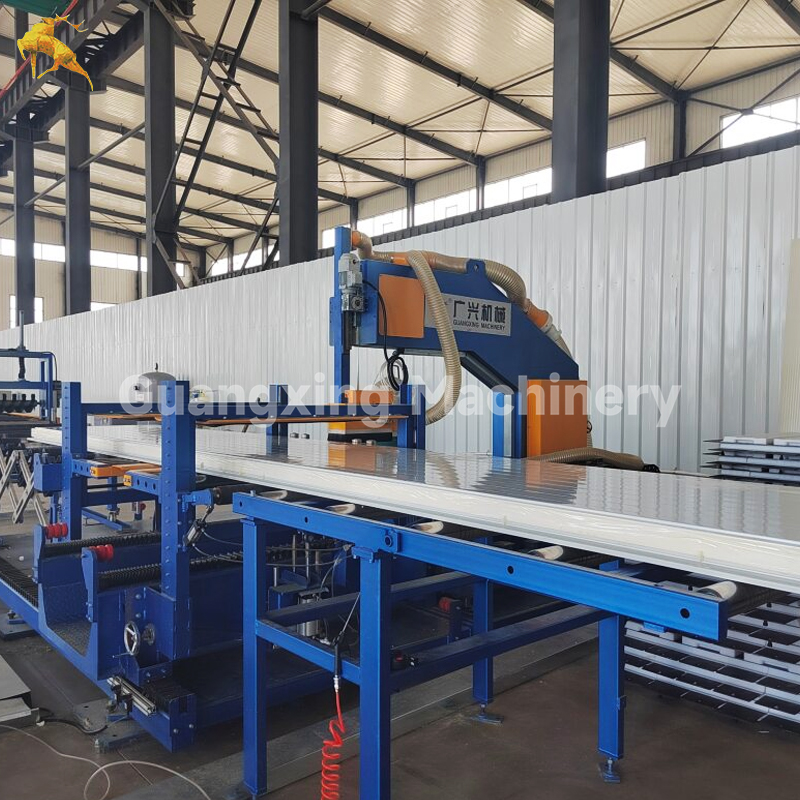

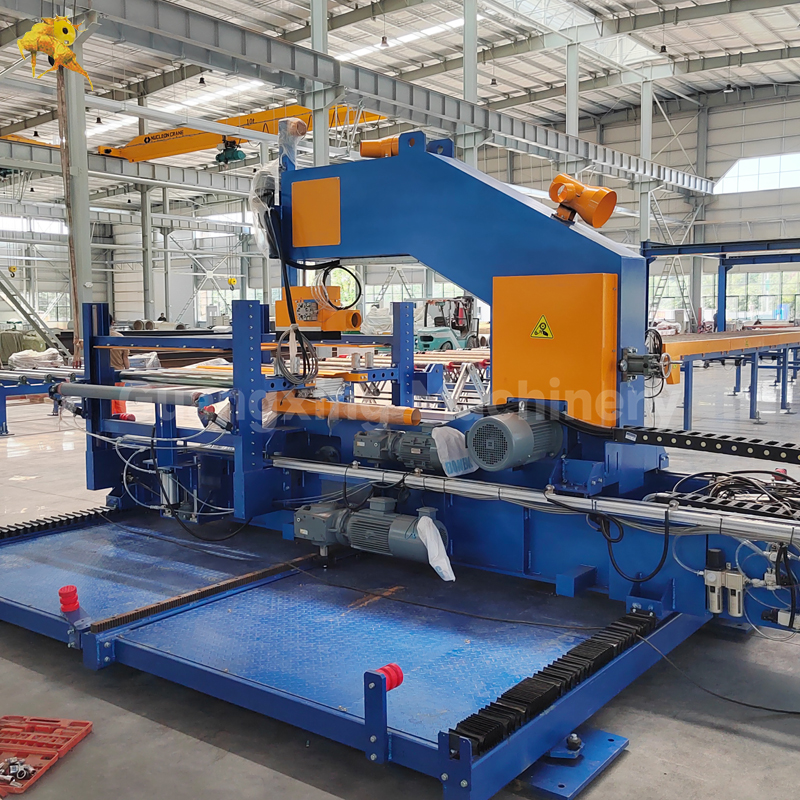

The flying saw or cross cutting machine cuts panels to precise lengths without stopping the production line.
Key Features
Servo-controlled cutting system
High cutting accuracy and repeatability
Suitable for continuous production lines
This ensures consistent panel dimensions and smooth production flow.

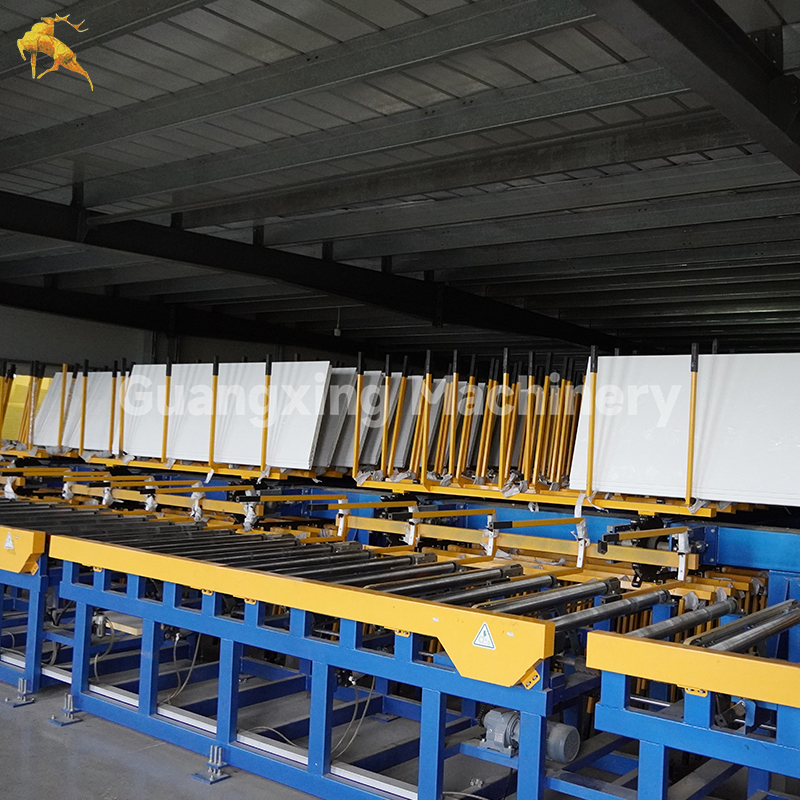

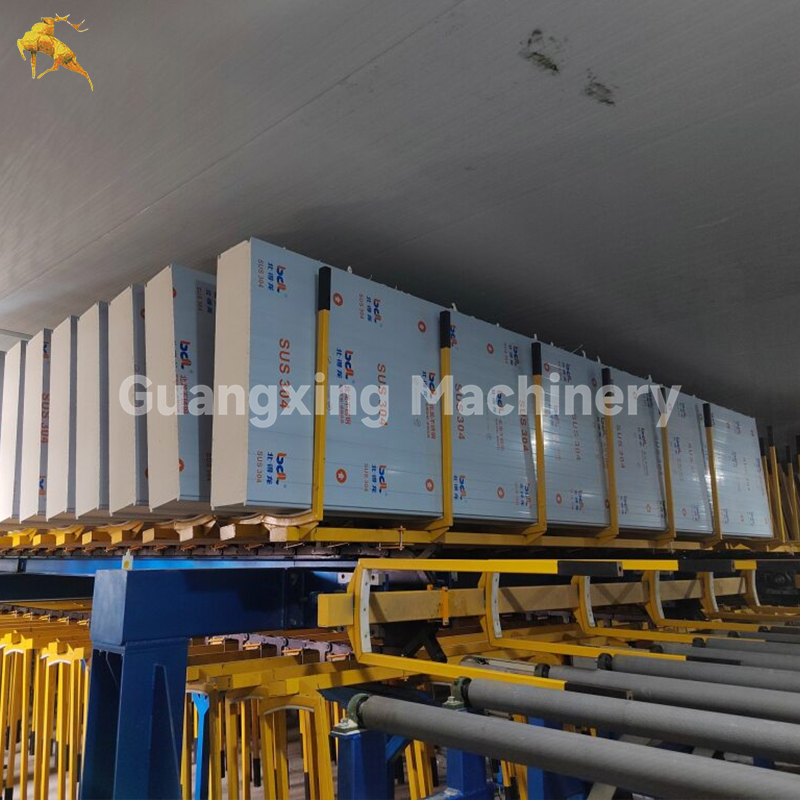

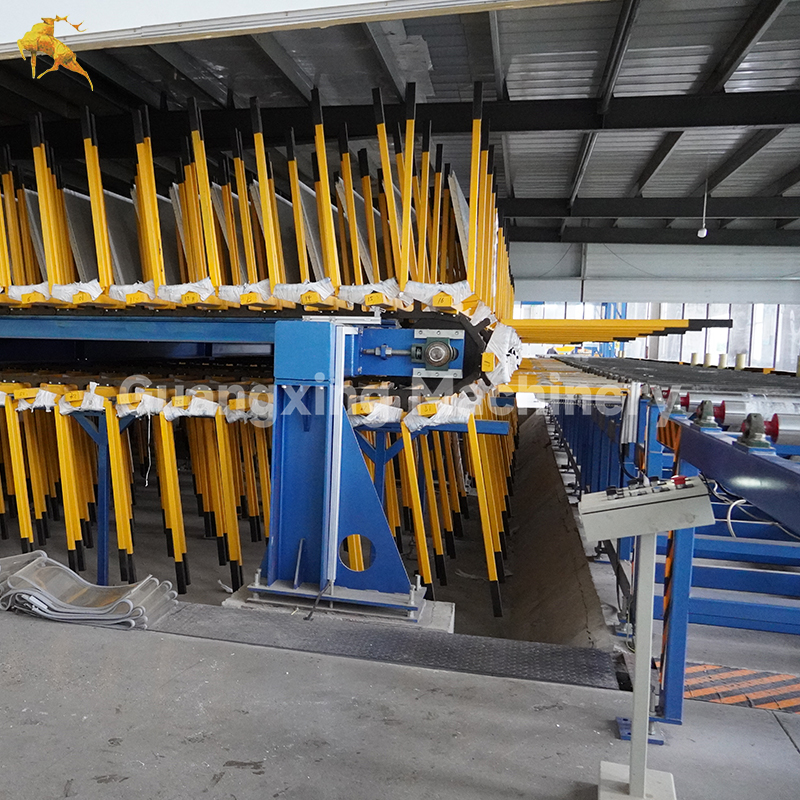

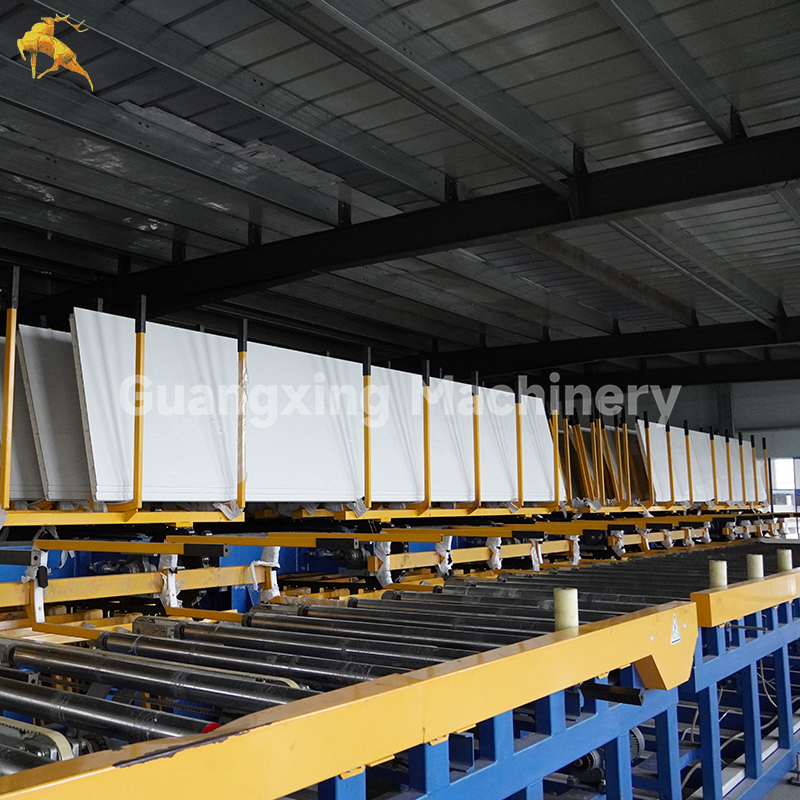

The cooling system is installed between the curing section and the cutting section to cool down sandwich panels in a controlled manner.
It eliminates residual heat from the core material and stabilizes panel dimensions before cutting.
Key Features
Continuous cooling conveyor
Uniform air cooling distribution
Compatible with high-speed production lines
This ensures dimensional stability, clean cutting edges, and smooth downstream production flow.

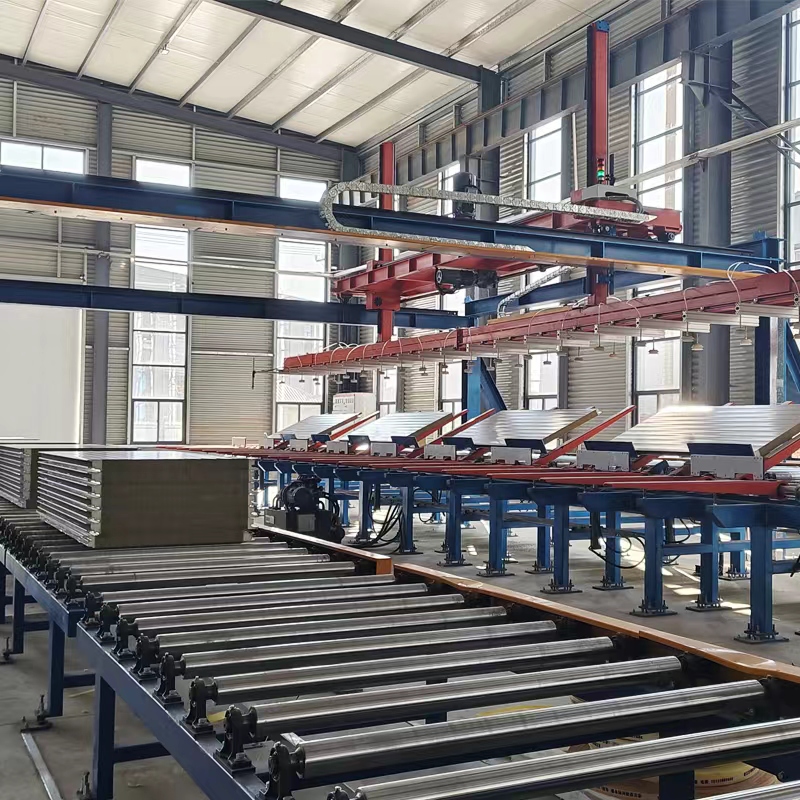

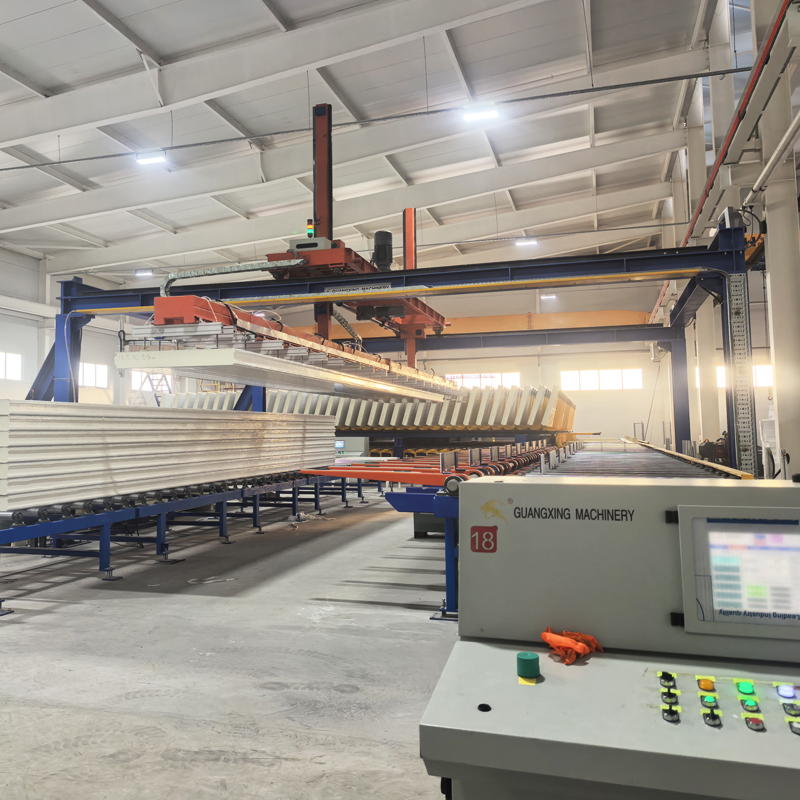

The automatic stacking machine arranges panels into uniform stacks for packaging and storage.
Main Advantages
Adjustable stacking height
Neat and stable panel stacks
Reduced manual labor requirements
This significantly improves packing efficiency and workplace safety.
High-quality sandwich panel production requires precise cutting and clean edges.
Our cutting and stacking system ensures:
Accurate length tolerance
Clean and straight cutting edges
Minimal burrs or deformation
This improves panel installation accuracy and reduces on-site adjustments.
The cutting and stacking system is precisely integrated with upstream equipment to ensure seamless production.
It works in coordination with:
Foaming & Core Processing System for cured panel output
Roll Forming System for consistent panel geometry
Production Line Control System for synchronized operation
This integration ensures continuous, stable, and high-efficiency production.
The cutting and stacking system is suitable for various sandwich panel production lines, including:
PU sandwich panel production lines
PIR sandwich panel production lines
Rock wool sandwich panel production lines
EPS sandwich panel production lines
It supports panels used in industrial buildings, cold storage facilities, and logistics centers.
By adopting a reliable cutting and stacking system, manufacturers can achieve:
Accurate and consistent panel dimensions
Improved production efficiency
Reduced labor and handling costs
Enhanced packaging and logistics operations
These benefits contribute to lower operating costs and higher customer satisfaction.
Get a Customized Cutting & Stacking Solution
If you are planning a new sandwich panel production line or upgrading existing equipment,
our engineering team can provide a cutting and stacking system tailored to your production requirements.
